Featured Tire Models

Double Road Truck Tires Technical Specifications

Double Road 12.00R24 commercial truck tire range — engineered for transport, ready mix and heavy-duty operations across the UAE.

Request Catalog

/ Filter by Application

GCC CertifiedEU Certified

Showing 3 of 3

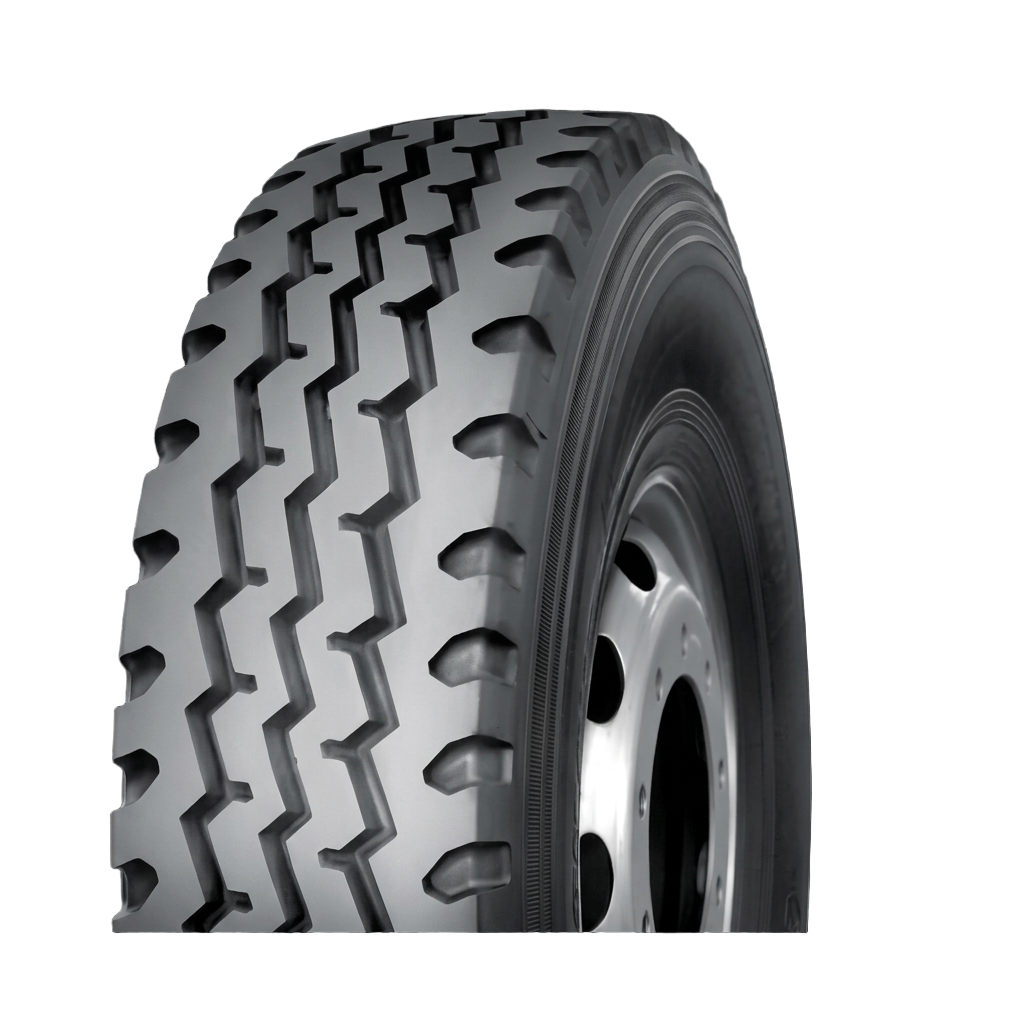

DR801

GCCEUCertified

Type	Size	P.R	Std. Rim	Load Index	Spd	Inflated Dimensions (mm)		Relative Pressure
Type	Size	P.R	Std. Rim	Load Index	Spd	S.W.	O.D.	Relative Pressure
								KPA
DR801	12.00R24	20	8.50	160/157	K	313	1226	900

View & Print Spec Sheet

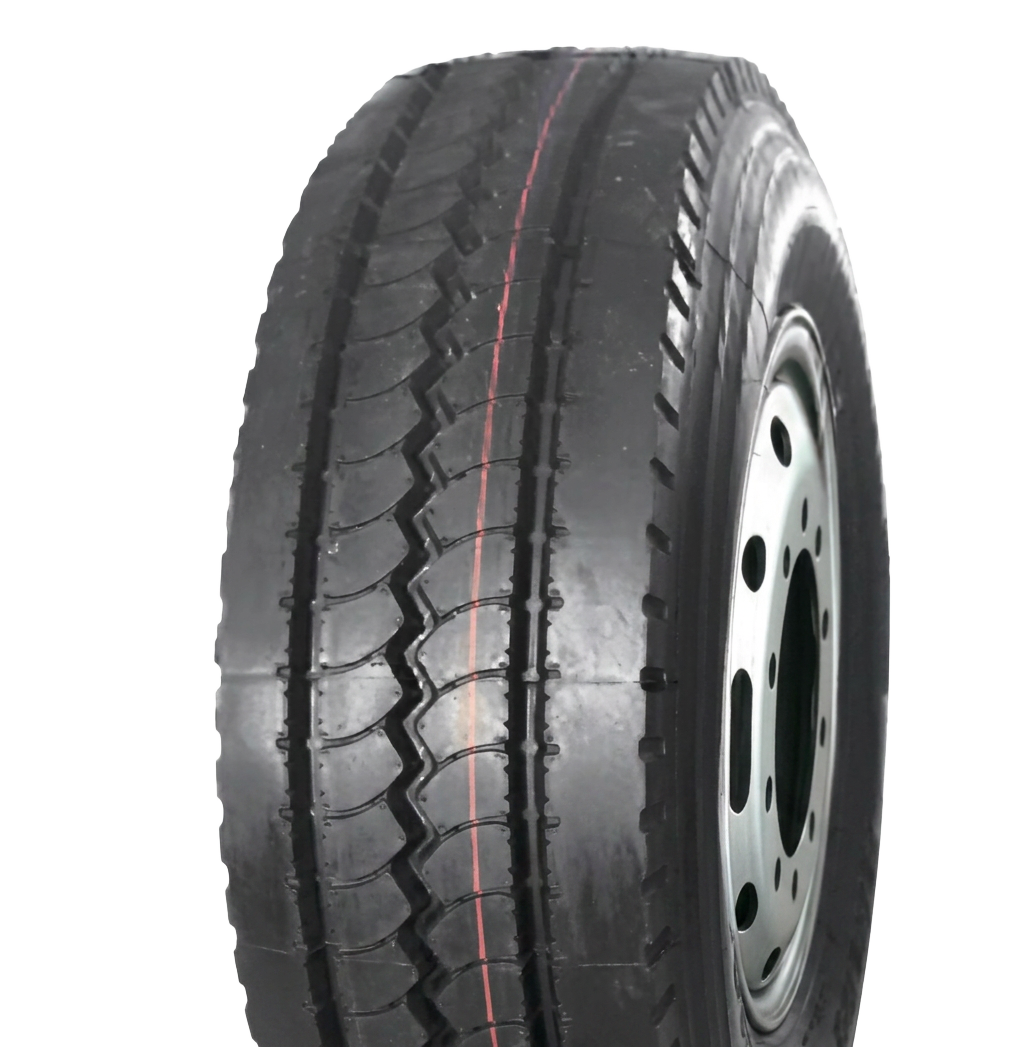

DR582

GCCEUCertified

Type	Size	P.R	Std. Rim	Load Index	Spd	Inflated Dimensions (mm)		Relative Pressure
Type	Size	P.R	Std. Rim	Load Index	Spd	S.W.	O.D.	Relative Pressure
								KPA
DR582	12.00R24	20	8.50	160/157	K	315	1230	900

View & Print Spec Sheet

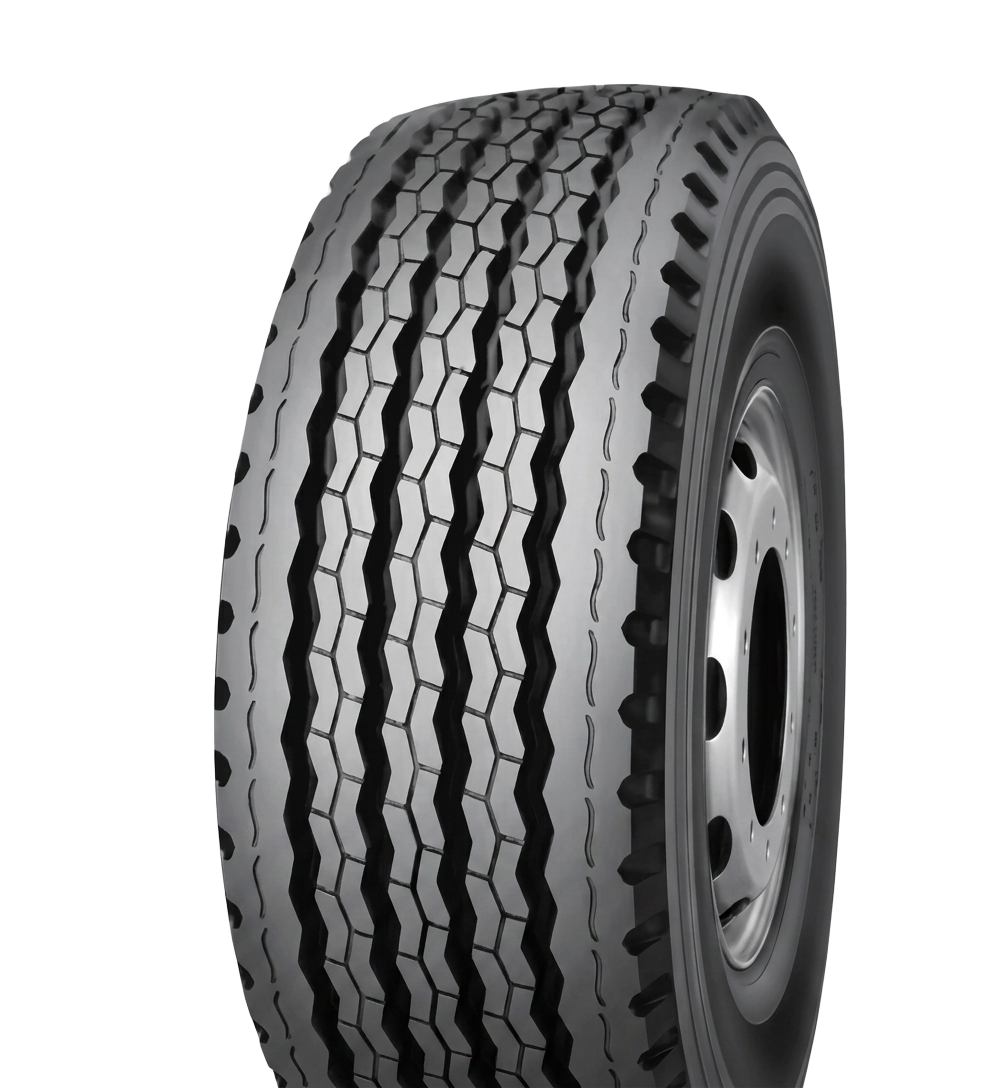

DR836

GCCEUCertified

Type	Size	P.R	Std. Rim	Load Index	Spd	Inflated Dimensions (mm)		Relative Pressure
Type	Size	P.R	Std. Rim	Load Index	Spd	S.W.	O.D.	Relative Pressure
								KPA
DR836	385/65R22.5	20	11.75	160	K	389	1072	900

View & Print Spec Sheet

Quality & Performance

Engineered for Commercial Reliability

Double Road truck tires are manufactured using advanced production technology and strict quality standards to deliver durability, traction, stability, and long-lasting commercial performance.

Long Tread Life

Heavy Load Capacity

Road Stability

Commercial Durability

Fleet Performance

Reliable Traction

Reference Charts

Speed Symbol & Load Index

Official Double Road reference tables for speed rating and load capacity used across the 12.00R24 commercial tire range.

/ Speed Symbol

Max permitted speed (km/h)

Symbol	Speed (km/h)
F	80
G	90
J	100
K	110
L	120
M	130
N	140
P	150
Q	160
R	170
S	180
T	190
U	200
H	210

/ Load Index

Max load capacity per tire (kg)

Load Index	Capacity (kg)
150	3350
152	3550
154	3750
155	3875
156	4000
157	4125
158	4250
159	4375
160	4500
161	4625
162	4750
164	5000
166	5300
168	5600
